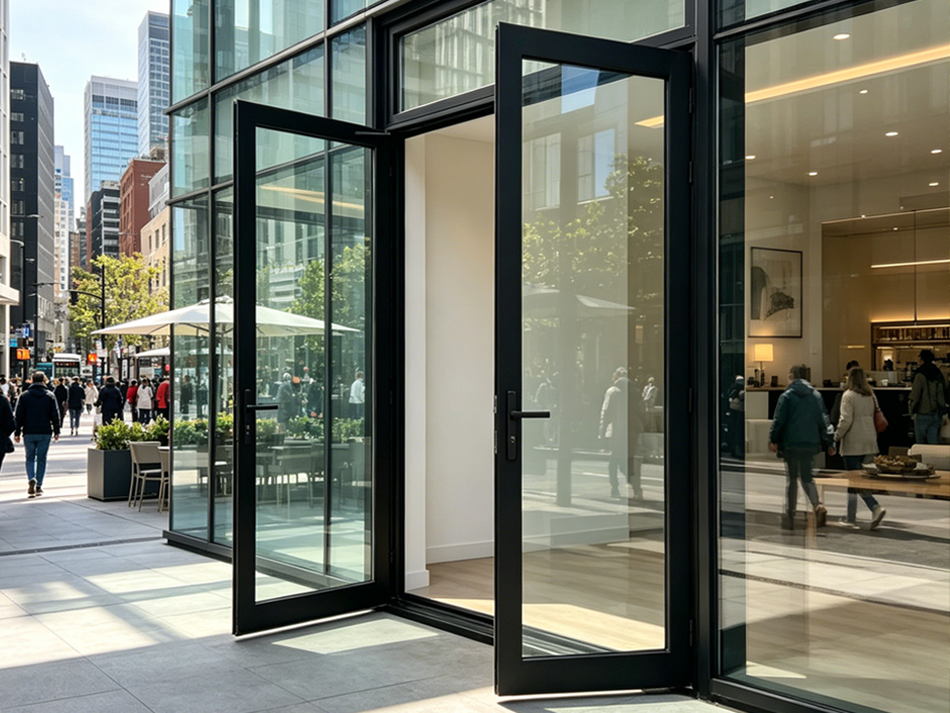

BA150 Hinged Door

NON-Thermal Break

Enhance airflow andfreshness within yourenvironment; our Hingeddoors facilitate wide openings, fostering optimalventilation to create arefreshing sanctuary year-round.

Product Overview

Water : 200PA
Design wind pressure : 1170PA/3000PA
5+12Ar+5 / 6+12Ar+6 / 8+9Ar+8

Pearl White

2721114G

Monument

2729066M

Black Mall

27219320

Other colours

Custom powder coating

Product Specifications

Glass Specifications

Available Glass Build-Up

5mm+12Ar+5mm

Available Glass Build-Up

6mm+12Ar+6mm

Available Glass Build-Up

8mm+9Ar+8mm

Glazing

5+12A+5

Visible Trans : 63%

Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k

Summer Daytime U-Value : Summer Daytime – 1.81W/m²k

Glazing

6+12A+6

Visible Trans : 72%

Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k

Summer Daytime U-Value : Summer Daytime – 1.83W/m²k

Glazing

8+9A+8

Visible Trans : 84%

Winter Nighttime U-Value : Winter Nighttime -2.73W/m²k

Summer Daytime U-Value : Summer Daytime – 2.72W/m²k

Hardware

Standard Hardware Reference

KINLONG

Optional Hardware Upgrades

Doric (Only for use without a flyscreen)

Maximum Performance

Water Tightness

+200Pa

Ultimate Pressure

Positive Pressure Maximum pressure: +2.00 kPa

Ultimate Pressure

Negative Pressure Maximum pressure: -2.83 kPa

Air Tightness

Under pressure difference of: +/-75Pa

Air Tightness

Allowed air infiltration rate: 25.945m3/hr

Application Scenarios

Suitable for various building and project types

Residential Buildings Commercial Complexes Office Towers Hotels & Resorts Schools & Universities Hospitals & Healthcare Shopping Malls Villas & Townhouses
