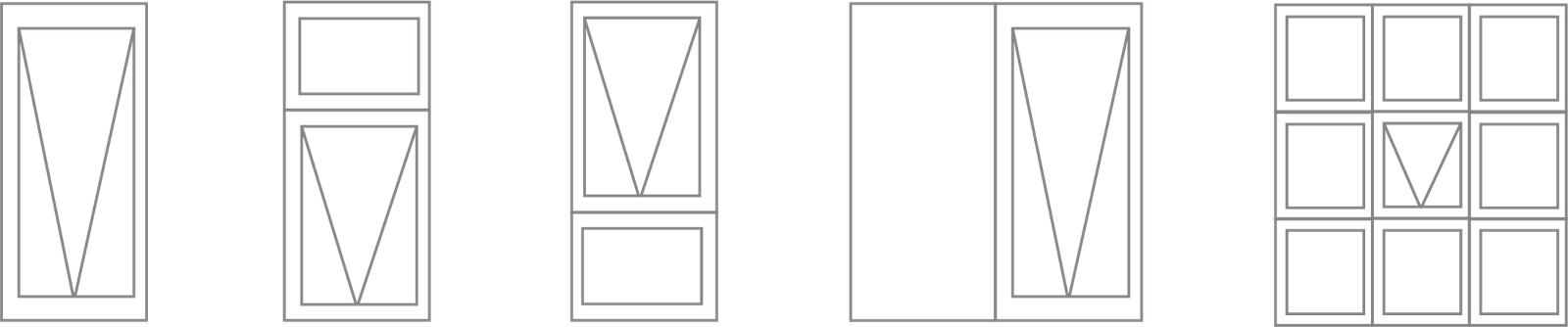

VAH100 Awning Window

Glazing rebate depth：36mm

Frame visible surface：35mm

Glass specifications：

5mm+12Ar+5mm

6mm+12Ar+6mm

8mm+9Ar+8mm

Glass Configuration：

Clear

Fluted Glass

Custom Coating Colors

Obscured Glass

Single Panel Silver Low-E

Double Silver Low-E

Ultra Clear

Single Panel Bule Low-E

Hardware：

China brand single chain winder

Doric DS1# 27001 single chain winder

Doric DS94 # 27001 double chain winder

Standard Equipment

Optional Equipment

Water Tightness :
200Pa

Ultimate Pressure :
2000Pa with no collapse

Air Tightness :
Sealed
Positive – 75Pa – 9.38Ls⁻¹
Negative – 75Pa – 10.23Ls⁻¹
Overall Area: 6.0227m²

GLAZING
5+12A+5
Visible Trans: 63%
U-Value:
Winter Nighttime -1.85W/m²k
Summer Daytime – 1.81W/m²k

6+12A+6
Visible Trans: 72%
U-Value:
Winter Nighttime -1.85W/m²k
Summer Daytime – 1.83W/m²k
