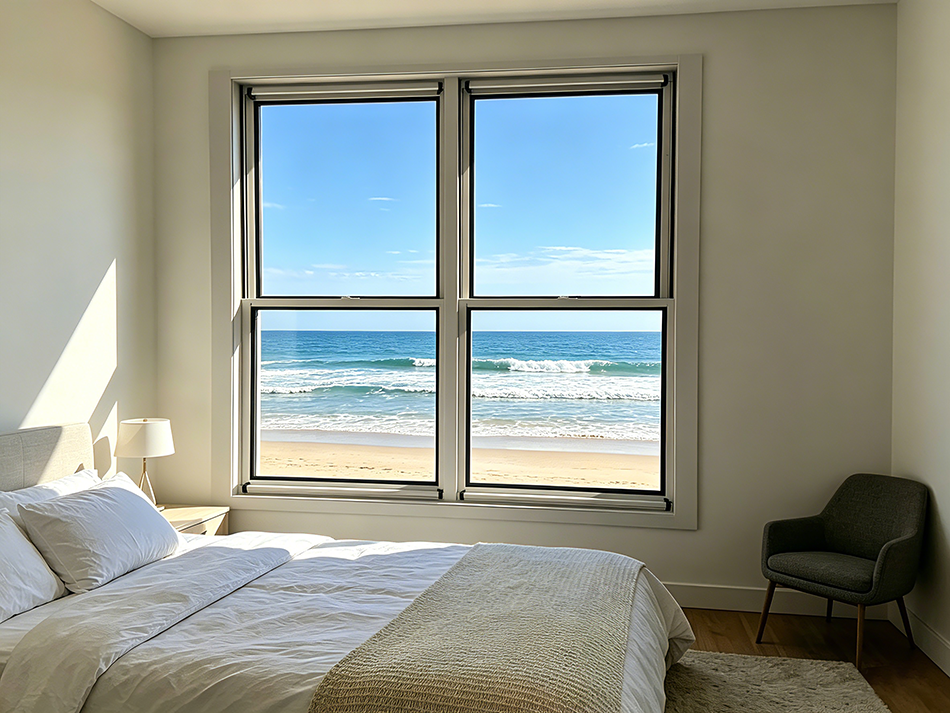

MC100 Double Hung Window

Thermal Break

Experience more spacious interiors with ourProvincial Double Hung windows. Designed with large pieces of glass, theyoffer better indoorlighting, wider views, andimproved transparency.

Product Overview

150Pa water tightness
800Pa-2000Pa ultimate pressure
5+12A+5 and 6+12A+6 glazing options

Pearl White

2721114G

Monument

2729066M

Black Mall

27219320

Other colours

Custom powder coating

Product Specifications

Glass Specifications

Available Glass Build-Up

5mm+12Ar+5mm

6mm+12Ar+6mm

Glazing

5+12A+5

Visible Trans : 63%

Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k

Summer Daytime U-Value : Summer Daytime – 1.81W/m²k

Glazing

6+12A+6

Visible Trans : 72%

Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k

Summer Daytime U-Value : Summer Daytime – 1.83W/m²k

Hardware

Standard Hardware Reference

China brand

Standard Equipment

Maximum Performance

Water Tightness

150Pa

Ultimate Pressure

2000Pa with no collapse

Air Tightness

At +75 Pa: 2.14 L/s·m²

Air Tightness

At -75 Pa: 2.10 L/s·m²

Air Tightness

Overall Area: 2.60 m²

Product Highlights

Opening Diagrams

Application Scenarios

Suitable for various building and project types

Residential Buildings Commercial Complexes Office Towers Hotels & Resorts Schools & Universities Hospitals & Healthcare Shopping Malls Villas & Townhouses
