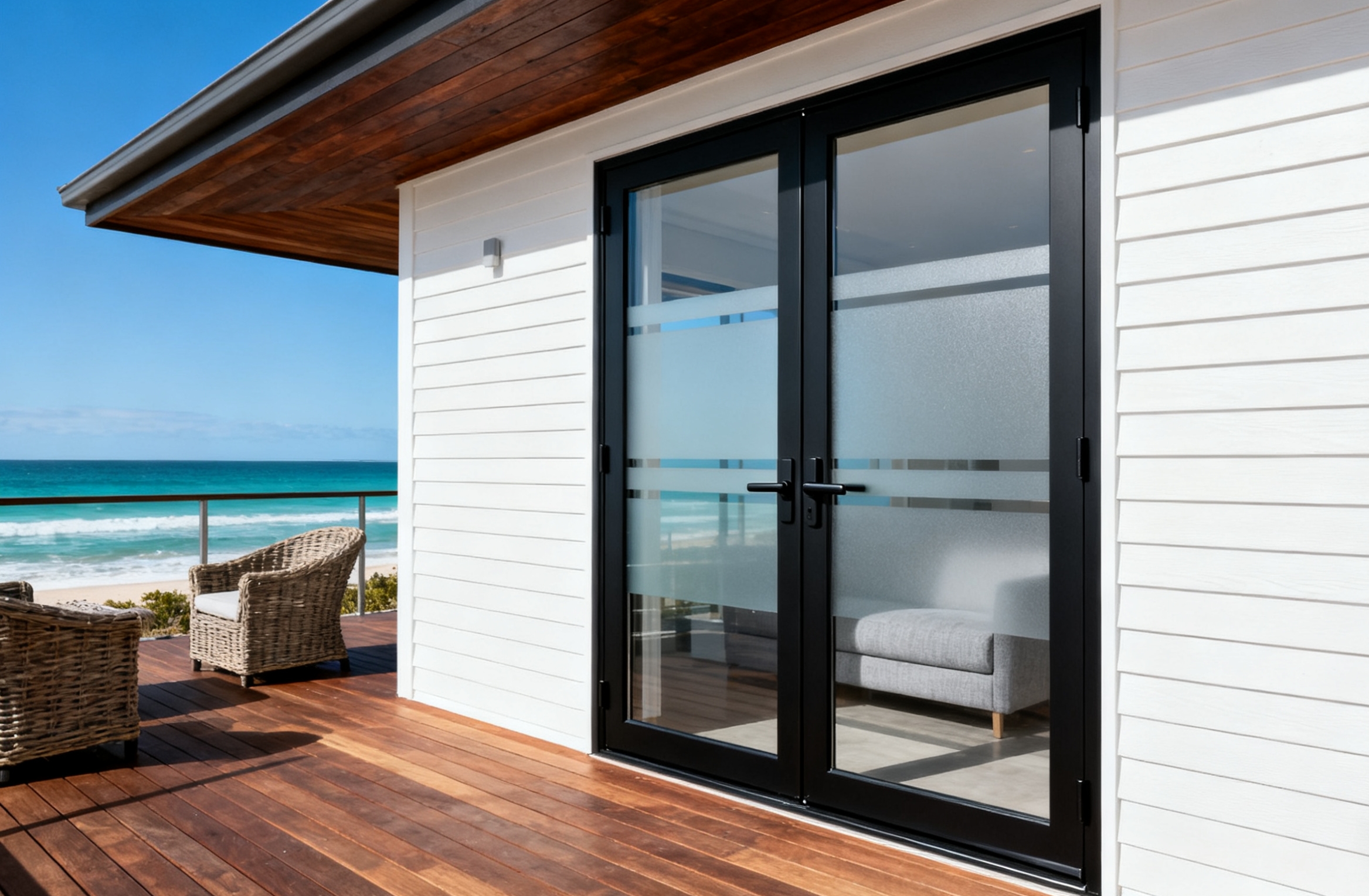

MA100 Hinged Door

NON-Thermal Break

Enjoy improvedventilation andbreathability with ourHinged doors, allowing forfull opening to achieveoptimal air circulation,especially beneficial duringthe summer months.

Product Overview

Water Tightness : 200Pa
Ultimate Pressure : 2000Pa with no collapse
5+12Ar+5 / 6+12Ar+6 / 8+9Ar+8

Pearl White

2721114G

Monument

2729066M

Black Mall

27219320

Other colours

Custom powder coating

Product Specifications

Glass Specifications

Available Glass Build-Up

5mm+12Ar+5mm

6mm+12Ar+6mm

8mm+9Ar+8mm

Glazing

5+12A+5

Visible Trans : 63%

Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k

Summer Daytime U-Value : Summer Daytime – 1.81W/m²k

Glazing

5+12A+5

Visible Trans : 72%

Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k

Summer Daytime U-Value : Summer Daytime – 1.83W/m²k

Hardware

Standard Hardware Reference

China Brand Single Chain Winder

Optional Hardware Upgrades

Doric DS1# 27001 Single chain winder

Doric DS94 # 27001 Double chain winder

Maximum Performance

Water Tightness

200Pa

Ultimate Pressure

2000Pa with no collapse

Air Tightness :

Sealed: At +75 Pa: 0.52 L/s·m²

Air Tightness :

Sealed: At -75 Pa: 0.98 L/s·m²

Air Tightness :

Sealed: Overall Area: 6.15 m²

Product Highlights

Opening Diagrams

Application Scenarios

Suitable for various building and project types

Residential Buildings Commercial Complexes Office Towers Hotels & Resorts Schools & Universities Hospitals & Healthcare Shopping Malls Villas & Townhouses
