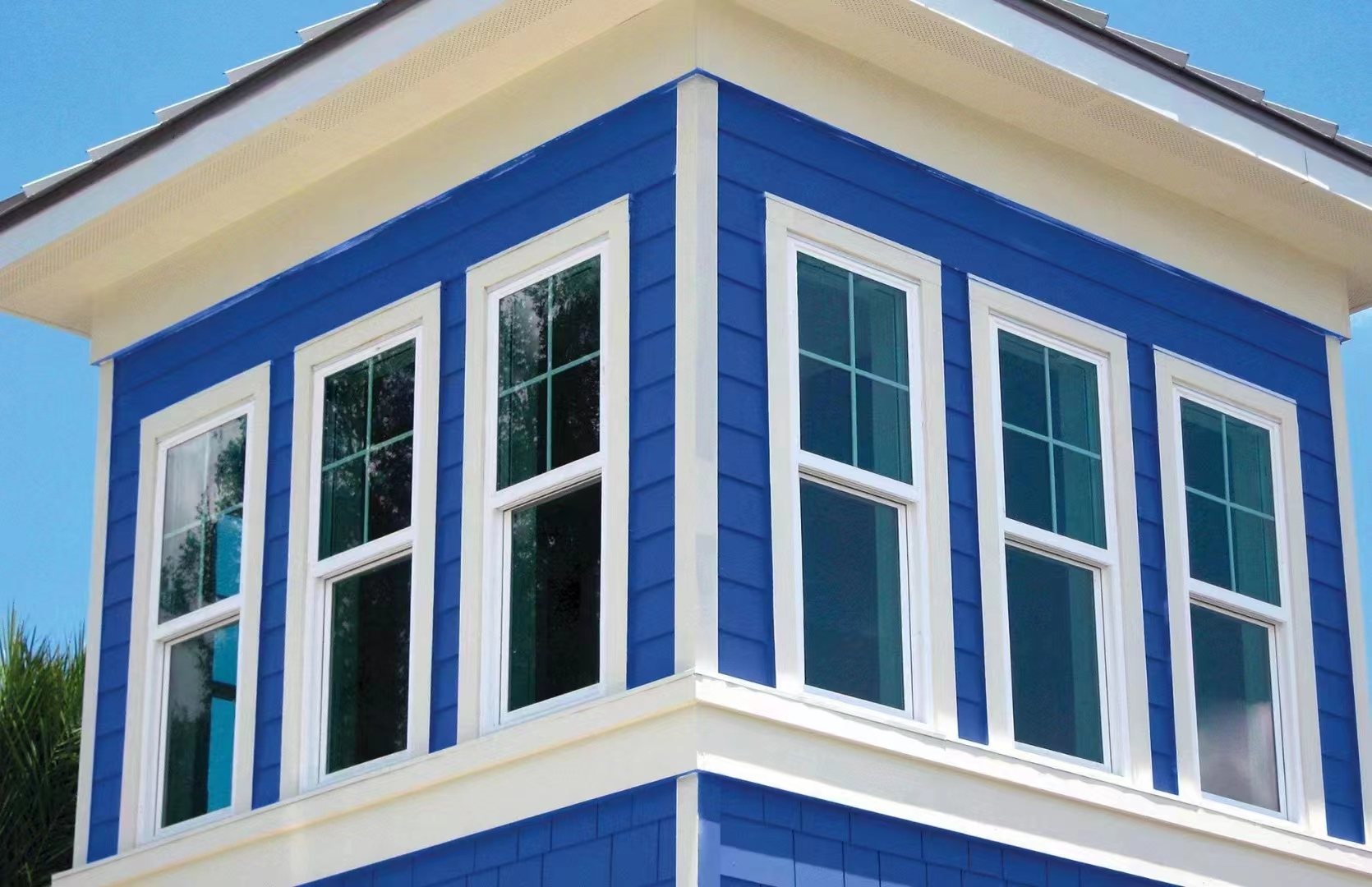

MA100 Double Hung Window

NON-Thermal Break

Enjoy outstandinglighting performance withour Double Hungwindows, surpassing thatof casement windows.Benefit from increasedflexibility with simpler andmore convenientinstallation anddisassembly of our DoubleHung windows.

Product Overview

Slim Linked Double Hung Window
MA100 Vertical Linked Double Hung Window

Pearl White

2721114G

Monument

2729066M

Black Mall

27219320

Other colours

Custom powder coating

Product Specifications

Glass Specifications

Available Glass Build-Up

5mm+12Ar+5mm

Available Glass Build-Up

6mm+12Ar+6mm

Glazing

5+12A+5

Visible Trans : 63%

Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k

Summer Daytime U-Value : Summer Daytime – 1.81W/m²k

Glazing

6+12A+6

Visible Trans : 72%

Winter Nighttime U-Value : Winter Nighttime -1.85W/m²k

Summer Daytime U-Value : Summer Daytime – 1.83W/m²k

Hardware

Standard Hardware Reference

China brand

Maximum Performance

Water Tightness

150Pa

Ultimate Pressure

2000Pa with no collapse

Air Tightness

Sealed : At +75 Pa: 2.14 L/s·m²

Air Tightness

Sealed : At -75 Pa: 2.10 L/s·m²

Air Tightness

Sealed : Overall Area: 2.60 m²

Product Highlights

Opening Diagrams

Application Scenarios

Suitable for various building and project types

Residential Buildings Commercial Complexes Office Towers Hotels & Resorts Schools & Universities Hospitals & Healthcare Shopping Malls Villas & Townhouses
