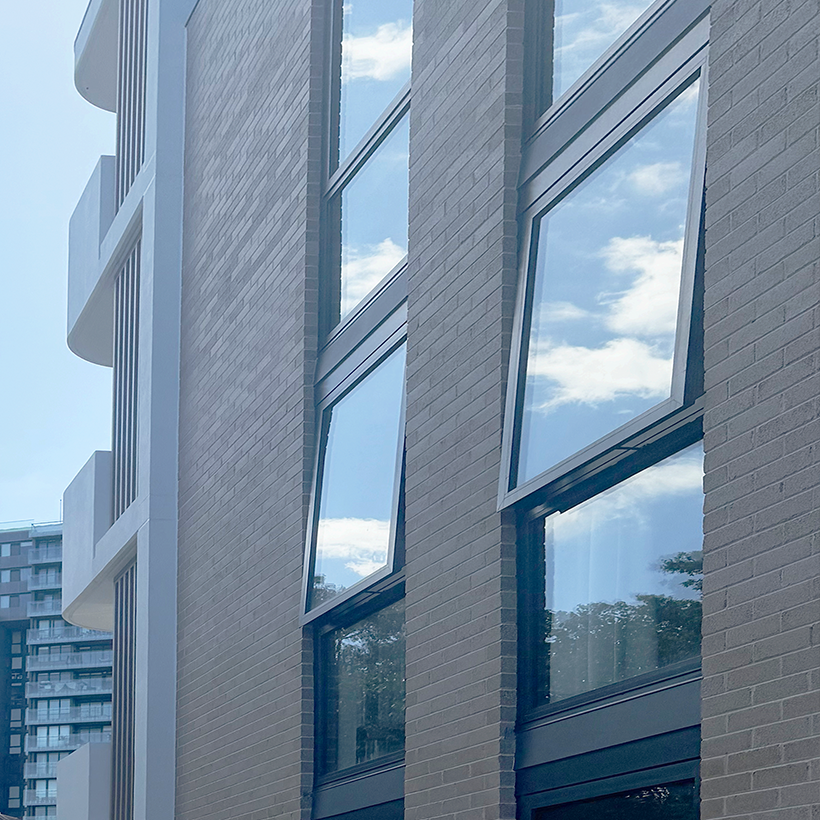

Apex Awning100 – AS960

Apex Awning100 – AS960

Apex Awning100 – AS960

Apex Awning100 – AS960

Non-Thermal Break

Hinged at the top and opening outward from the bottom, this window lets fresh air in even during light rain. The angled sash directs water away while creating a ventilation gap at the bottom, so you can enjoy natural airflow without worrying about drips.

Product Overview

  • MD100 Fixed Window
  • MD100 Awning Window only
  • MD100 Fixed&Awning Window
Pearl White
Pearl White
2721114G
Monument
Monument
2729066M
Black Mall
Black Mall
27219320
Other colours
Other colours
Custom powder coating

Product Specifications

Glass Specifications

Available Glass Build-Up
5mm+12Ar+5mm
6mm+12Ar+6mm
8mm+12Ar+8mm

Glazing

5+12A+5
Visible Trans : 63%
Winter Nighttime U-Value : Winter Nighttime -1.85W/mu00b2k
Summer Daytime U-Value : Summer Daytime u2013 1.81W/mu00b2k

Glazing

6+12A+6
Visible Trans : 72%
Winter Nighttime U-Value : Winter Nighttime -1.85W/mu00b2k
Summer Daytime U-Value : Summer Daytime u2013 1.83W/mu00b2k

Glazing

8+12A+8
Visible Trans : 84%
Winter Nighttime U-Value : Winter Nighttime -2.73W/mu00b2k
Summer Daytime U-Value : Summer Daytime u2013 2.72W/mu00b2k

Hardware

Standard Hardware Reference
China Brand Single Chain Winder
Optional Hardware Upgrades
Doric DS1# 27001 Single chain winder
Doric DS94 # 27001 Double chain winder

Maximum Performance

Water
960PA
Design wind pressure
1600PA/3600PA
Air Tightness
Under pressure difference of: +/-150Pa
Air Tightness
Allowed air infiltration rate: 38.016m3/hr

Customisation

Glass Configuration Options
Clear
Fluted Glass
Custom Coating Colors
Obscured Glass
Single Panel Silver Low-E
Double Silver Low-E
Ultra Clear
Single Panel Bule Low-E

Applications

Application scenario
Detached homes
Apartment developments
Townhouse projects
Commercial glazed window openings
Education and healthcare projects
Coastal residential projects

Product Highlights

Opening Diagrams

Opening Diagrams

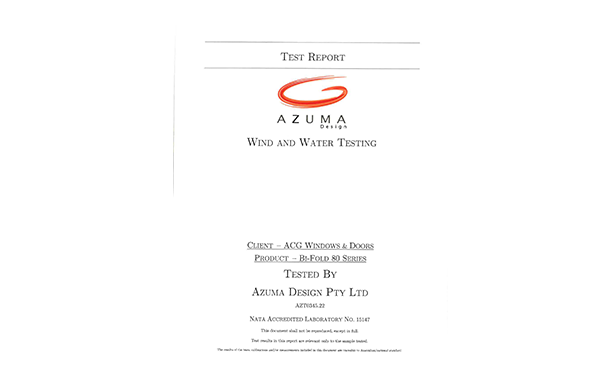

Certified

Certified
