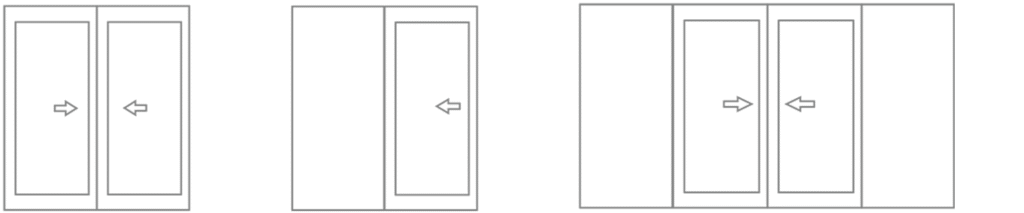

MD150 Sliding Door FSSF

Glass specifications:

5mm+12Ar+5mm

6mm+12Ar+6mm

8mm+9Ar+8mm

Glass Configuration:

Clear

Fluted Glass

Custom Coating Colors

Obscured Glass

Single Panel Silver Low-E

Double Silver Low-E

Ultra Clear

Single Panel Bule Low-E

Hardware:

China brand D lock

Doric D lock DS2130

Doric D lock DS3130

China brand double hook lock+300 handle

Standard Equipment

Optional Equipment

Water Tightness :
450Pa

Ultimate Pressure :
Positive – 3000Pa
Negative – 3000Pa

Air Tightness :
Sealed
Positive – 75Pa – 46.46Ls⁻¹
Negative – 75Pa – 52.16Ls⁻¹

GLAZING
5+12A+5
Visible Trans: 63%
U-Value:
Winter Nighttime -1.85W/m²k
Summer Daytime – 1.81W/m²k

8+12A+8
Visible Trans: 72%
U-Value:
Winter Nighttime -1.85W/m²k
Summer Daytime – 1.83W/m²k
