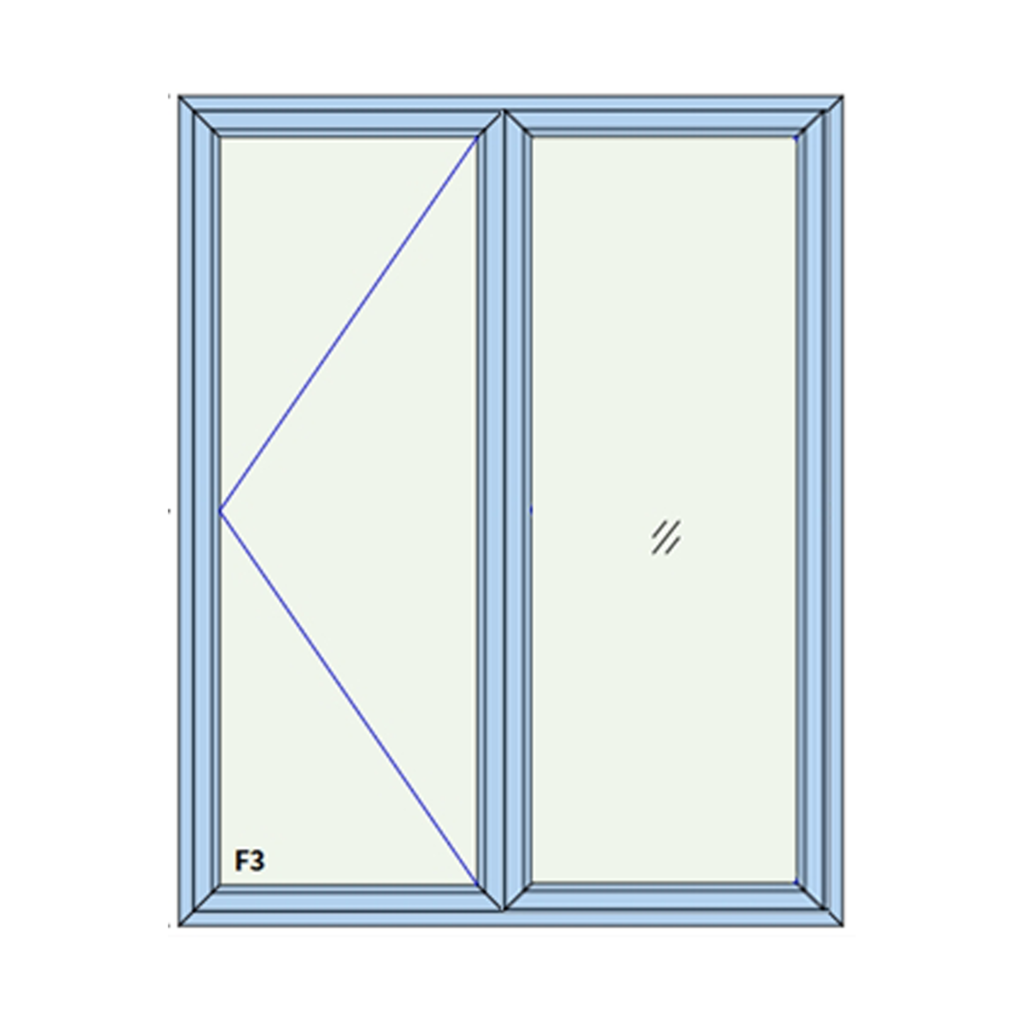

BA150 Swing Door

Glass specifications:
5mm+12Ar+5mm
6mm+12Ar+6mm
8mm+9Ar+8mm
Glass Configuration:
Clear
Fluted Glass
Custom Coating Colors
Obscured Glass
Single Panel Silver Low-E
Double Silver Low-E
Ultra Clear
Single Panel Bule Low-E
Hardware:
KINLONG
Doric (Only for use without a flyscreen)
Standard Color
Standard Equipment
Optional Equipment
Standard Color
Pearl White
2721114G
Monument
2729066M
Black Mall
27219320
Other colors
can be customized

MAXIMUM PERFORMANCE

Water Tightness :
+200Pa

Ultimate Pressure :
Held at maximum pressure for 10 seconds
Positive Pressure:
Maximum pressure: +2.00 kPa
Duration: 50-60 sec
Negative Pressure:
Maximum pressure: -2.83 kPa
Duration: 50-60 sec

Air Tightness :
Under pressure difference of: +/-75Pa
Allowed air infiltration rate: 25.945m3/hr

GLAZING
5+12A+5
Visible Trans: 63%
U-Value:
Winter Nighttime -1.85W/m²k
Summer Daytime – 1.81W/m²k

6+12A+6
Visible Trans: 72%
U-Value:
Winter Nighttime -1.85W/m²k
Summer Daytime – 1.83W/m²k

8+12A+8
Visible Trans: 84%
U-Value:
Winter Nighttime -2.73W/m²k
Summer Daytime – 2.72W/m²k
