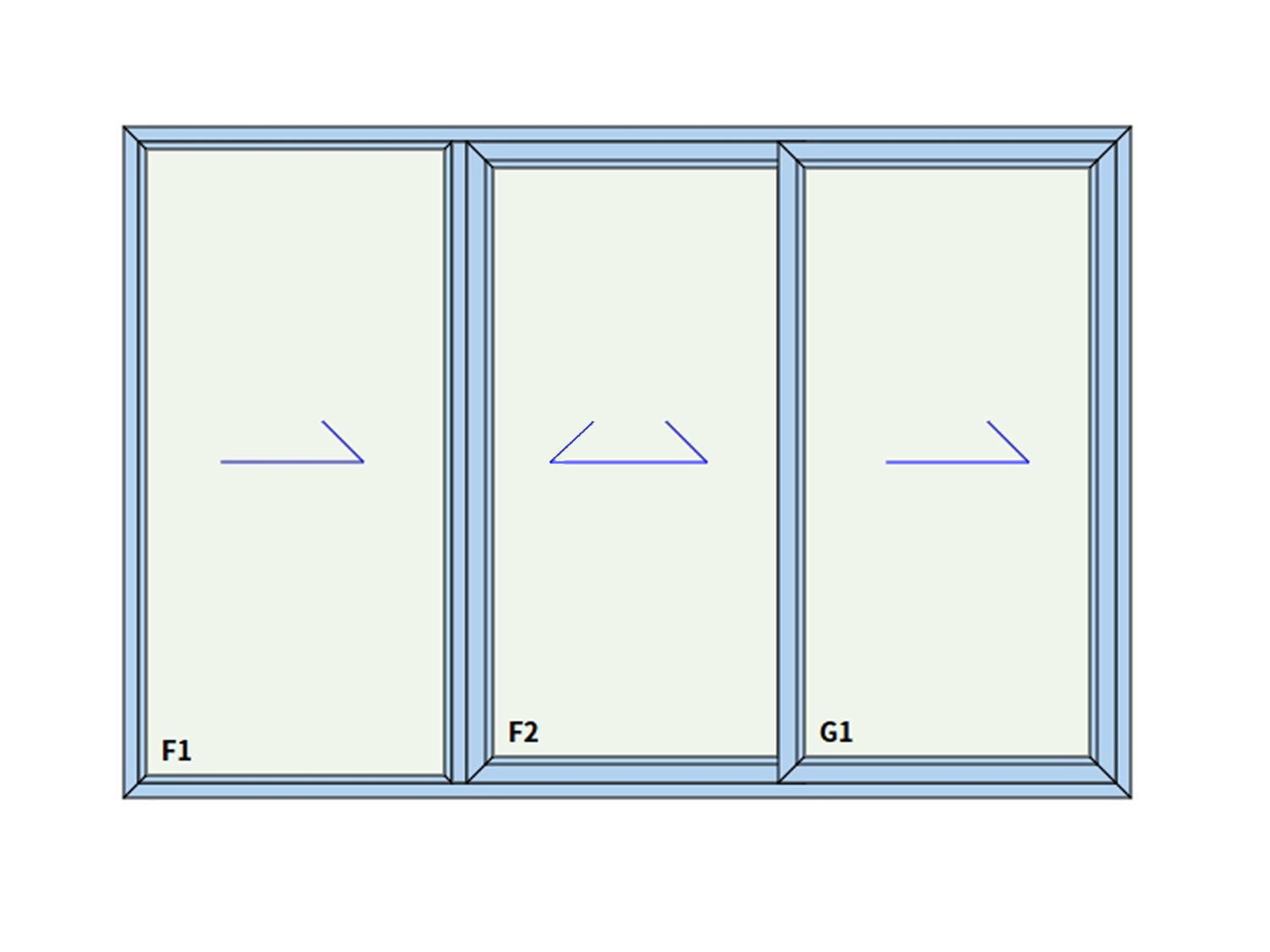

ACG140-220 Sliding Door

Glass specifications:

5mm+12Ar+5mm

6mm+12Ar+6mm

8mm+9Ar+8mm

Glass Configuration:

Clear

Fluted Glass

Custom Coating Colors

Obscured Glass

Single Panel Silver Low-E

Double Silver Low-E

Ultra Clear

Single Panel Bule Low-E

Hardware:

China Brand Single Chain Winder

Doric DS1# 27001 Single chain winder

Doric DS94 # 27001 Double chain winder

Standard Equipment

Optional Equipment

Water Tightness :
+450Pa

Ultimate Pressure :
2000Pa with no collapse

Air Tightness :
Sealed
At +75Pa: 4.42 L/s·m²
At -75Pa: 4.69 L/s·m²
Overall Area:27.90 m²

GLAZING
5+12A+5
Visible Trans: 63%
U-Value:
Winter Nighttime -1.85W/m²k
Summer Daytime – 1.81W/m²k

6+12A+6
Visible Trans: 72%
U-Value:
Winter Nighttime -1.85W/m²k
Summer Daytime – 1.83W/m²k

8+12A+8
Visible Trans: 84%
U-Value:
Winter Nighttime -2.73W/m²k
Summer Daytime – 2.72W/m²k
