ACG-100 Double Hung Window
Standard color
For More Colour options

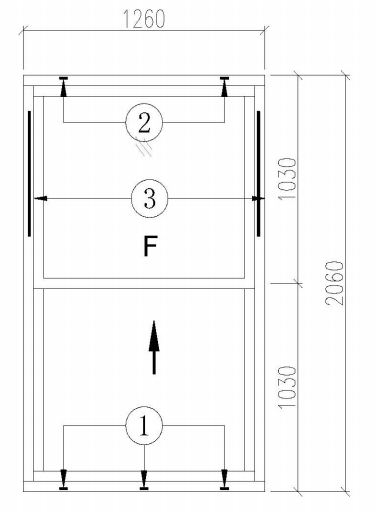

Sample Drawings
Product Information
- AS 2047 Test No : S220223081GZU.003
- Model : ACG-100 Double Hung Window
- Dimension of Window Frame : 1260 mm (Width) x 2060 mm (Height)x 118 mm (Thickness)
- Dimension of Window Sash :
Operable Sash : 1230mm (Width) x1030 mm ( Height)x50mm (Thickness)
Fixed Sash : 1230mm (Width) x 1030 mm (Height)x 50mm (Thickness) - Aluminum Profile :
Model : ACG-100
Manufacturer : Guangdong ACG Windows & Doors & Curtain Wall Co.Ltd - Frame Corner Construction Detail s:
Mechanically assembled : Screw : ST4.225 & Aluminium Connector : 505030T4 - Reinforcement : None
- Glazing :
Operable Sash : 1108(Width)x900mm (Height)
Fixed Sash : 1108(Width)x900 mm (Height)
Structure : 5mm+12A+5mm tempered double glazing
Supplier : XIYI - Hardware :
Specify type : Double Hung
Model : UXC100
Supplier : CALDWELL - Reinforcement : None
- Glazing :
Operable Sash : 1108(Width)x900mm (Height)Fixed
Sash : 1108(Width)x900 mm (Height)
Structure : 5mm+12A+5mm tempered double glazing
Supplier : XIYI
- Hardware :
Specify type : Double Hung
Model : UXC100
Supplier : CALDWELL - Weather-strip : None
- Thermal Break :
Model : C14.8
Material : PA66+25%F
Supplier : Yile - Drainage :
Sizes : 40mmx 8 mm (Width x Height)
quantity : 3 - Gasket(between sash andframe) :
Material : EPDM
Supplier : haiDa - Sealant of Glass :
Model : ss511 Neutral silicone sealant
Material : silicone sealant
Supplier : baiyun - Installation :
The rough opening allowed for a 10mm shim space. The exterior perimeter
of the test specimen was sealed with silicone sealant.
