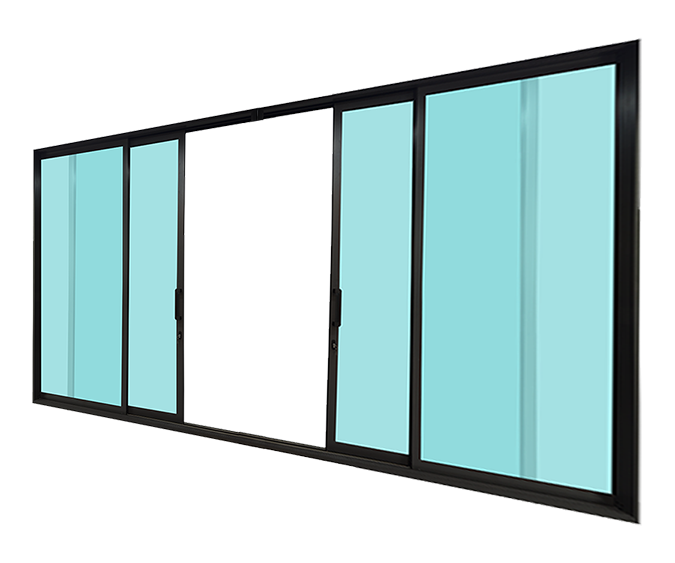

ACG100–100 Sliding Door

AS 2047 Test No : S220223081GZU.003
Model : ACG-100 Double Hung Window
Dimension of Window Frame : 1260 mm (Width) x 2060 mm (Height)x 118 mm (Thickness)
Dimension of Window Sash :
Operable Sash : 1230mm (Width) x1030 mm ( Height)x50mm (Thickness)
Fixed Sash : 1230mm (Width) x 1030 mm (Height)x 50mm (Thickness)
Aluminum Profile :
Model : ACG-100
Manufacturer : Guangdong ACG Windows & Doors & Curtain Wall Co.Ltd
Frame Corner Construction Detail s:
Mechanically assembled : Screw : ST4.225 & Aluminium Connector : 505030T4
Reinforcement : None
Glazing :
Operable Sash : 1108(Width)x900mm (Height)
Fixed Sash : 1108(Width)x900 mm (Height)
Structure : 5mm+12A+5mm tempered double glazing
Supplier : XIYI
Hardware :
Specify type : Double Hung
Model : UXC100
Supplier : CALDWELL
Reinforcement : None
Glazing :
Operable Sash : 1108(Width)x900mm (Height)Fixed
Sash : 1108(Width)x900 mm (Height)
Structure : 5mm+12A+5mm tempered double glazing
Supplier : XIYI

Hardware :
Specify type : Double Hung
Model : UXC100
Supplier : CALDWELL
Weather-strip : None
Thermal Break :
Model : C14.8
Material : PA66+25%F
Supplier : Yile
Drainage :
Sizes : 40mmx 8 mm (Width x Height)
quantity : 3
Gasket(between sash andframe) :
Material : EPDM
Supplier : haiDa
Sealant of Glass :
Model : ss511 Neutral silicone sealant
Material : silicone sealant
Supplier : baiyun
Installation :
The rough opening allowed for a 10mm shim space. The exterior perimeter
of the test specimen was sealed with silicone sealant.
