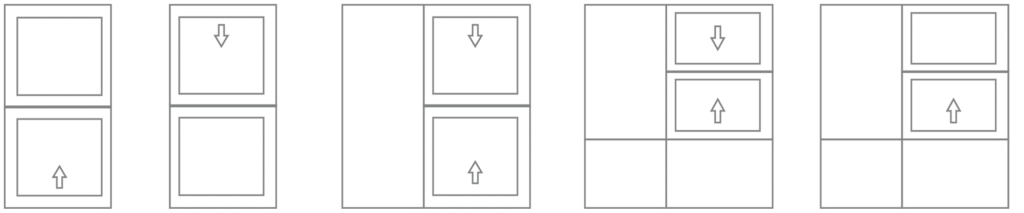

ACG-100 Double Hung Window

Glass specifications:

5mm+12Ar+5mm

6mm+12Ar+6mm

Glass Configuration:

Clear

Fluted Glass

Custom Coating Colors

Obscured Glass

Single Panel Silver Low-E

Double Silver Low-E

Ultra Clear

Single Panel Bule Low-E

Hardware:

China brand

Standard Equipment

Optional Equipment

Water Tightness :
150Pa

Ultimate Pressure :
2000Pa with no collapse

Air Tightness :
Sealed
At +75 Pa: 2.14 L/s·m²
At -75 Pa: 2.10 L/s·m²
Overall Area: 2.60 m²

GLAZING
5+12A+5
Visible Trans: 63%
U-Value:
Winter Nighttime -1.85W/m²k
Summer Daytime – 1.81W/m²k

6+12A+6
Visible Trans: 72%
U-Value:
Winter Nighttime -1.85W/m²k
Summer Daytime – 1.83W/m²k
